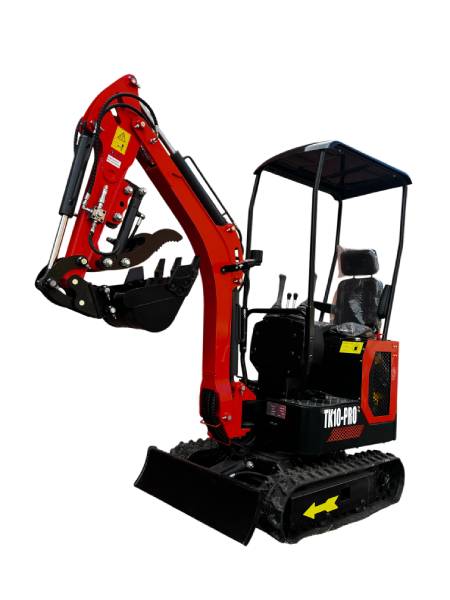

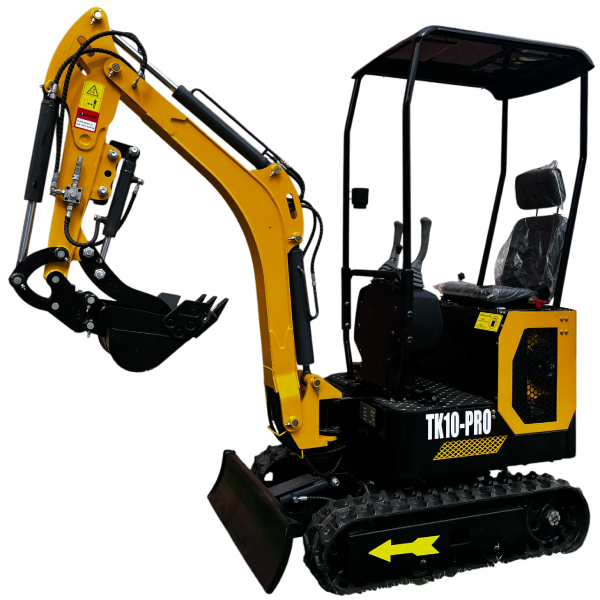

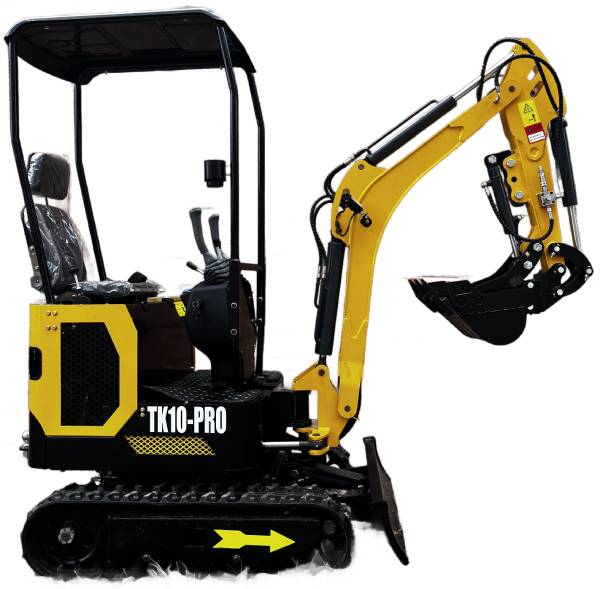

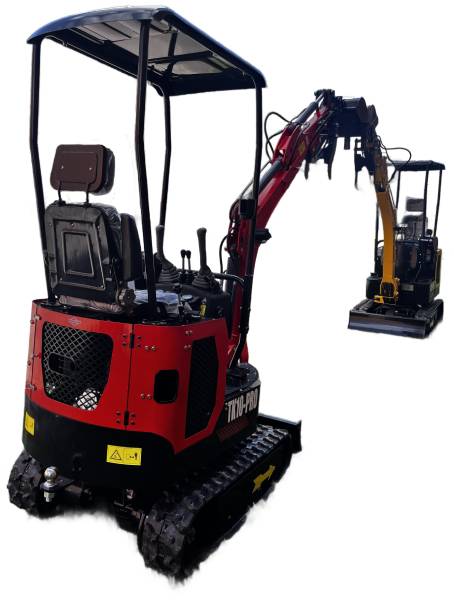

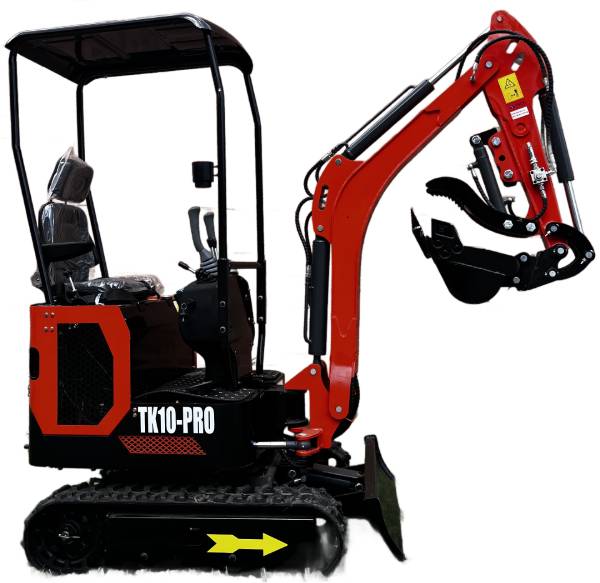

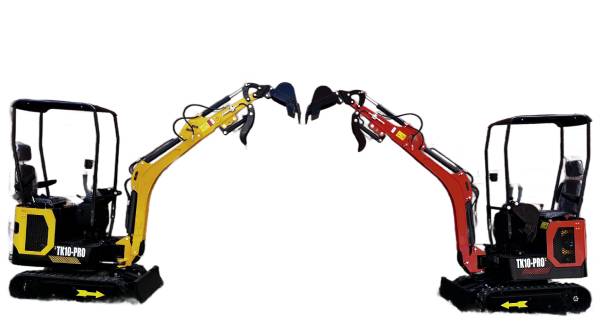

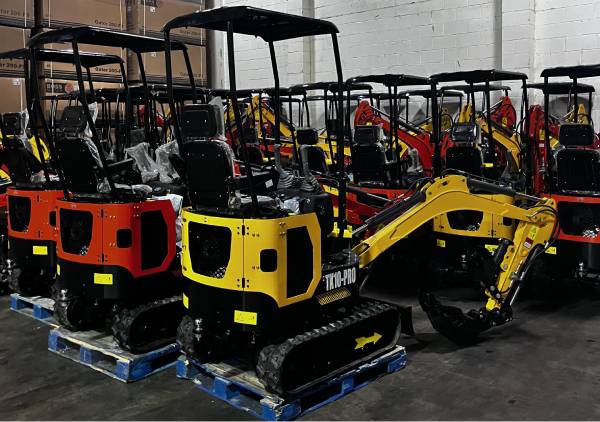

TK10-PRO

Specifications:

Engine Model: Briggs And Stratton 4 Stroke Gas Engine

Power:13.5HP

Start System： Electric Start

Emission Standard: EPA

Rotation Speed: 3000(rpm)

Track Type: 180*72*37

Bucket Capacity: 0.025

Dimension Length*Width*Height: 111"*37"*87"

With cabin Height: 89"

Minimum Length:  95"

Minimum Ground Clearance:  3.6"

Max. Digging Height:  101"

Max. Dumping Height: 69"

Max. Digging Depth: 63"

Max. Digging Radius:  120” Or 3050(mm)

Upgrade Configuration List :

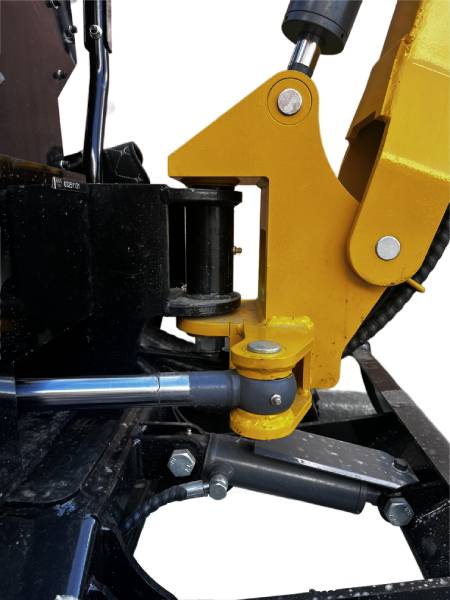

1, Swing Boom

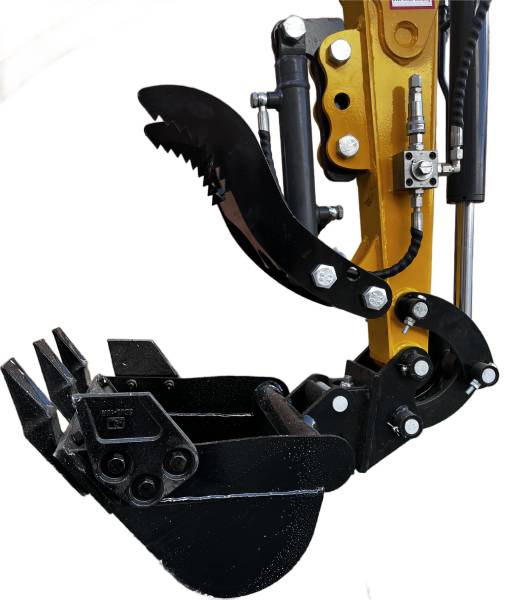

2, Hydraulic Thumb Controlled Via Foot Pedal

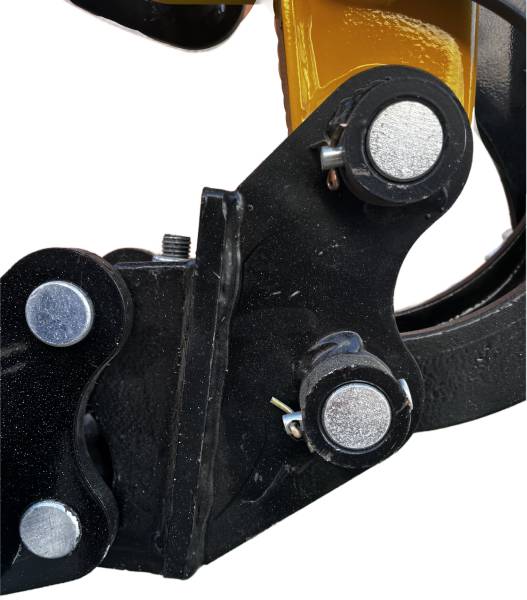

3, Quick Attach Attachment Included

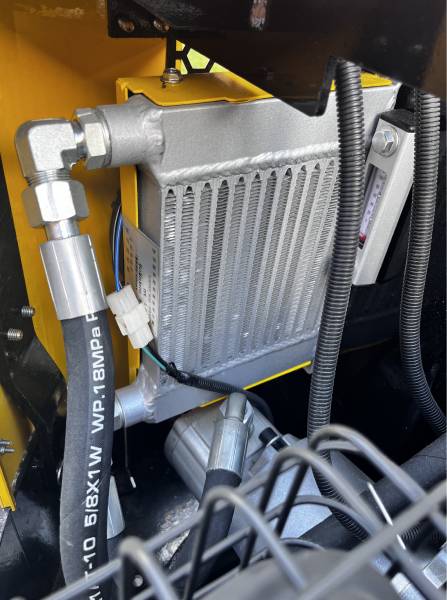

4, Hydraulic Oil Cooler

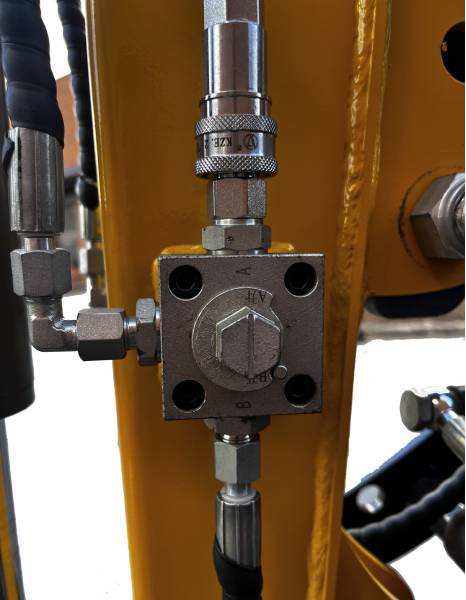

5, Hydraulic Diverter Valves For Running Attachments With Quick Couplers

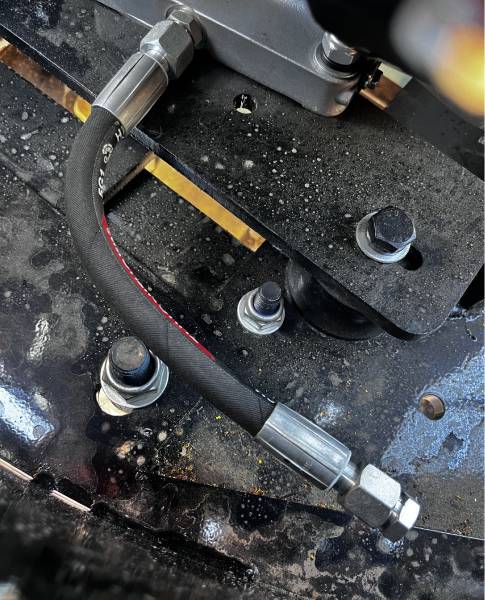

6, SAE Approved Hydraulic Lines Run Through Boom For Added Protection

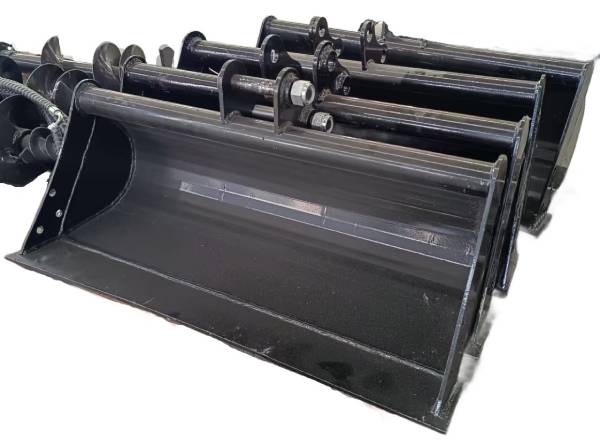

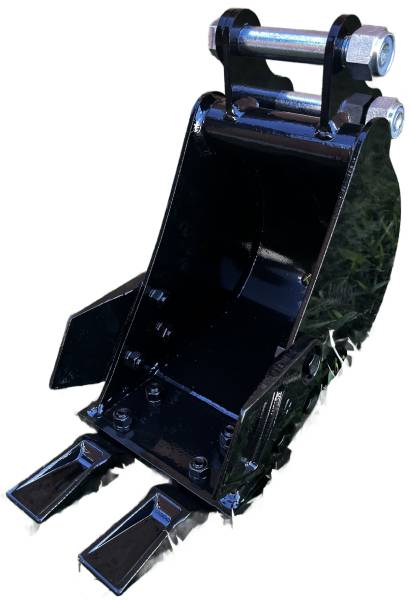

7, 17" Tooth Bucket Included

8, 8" Tooth Bucket Included

9, 4-Legged Roof

10, High-Back Seat With Arm Rests

11, Seat Belt

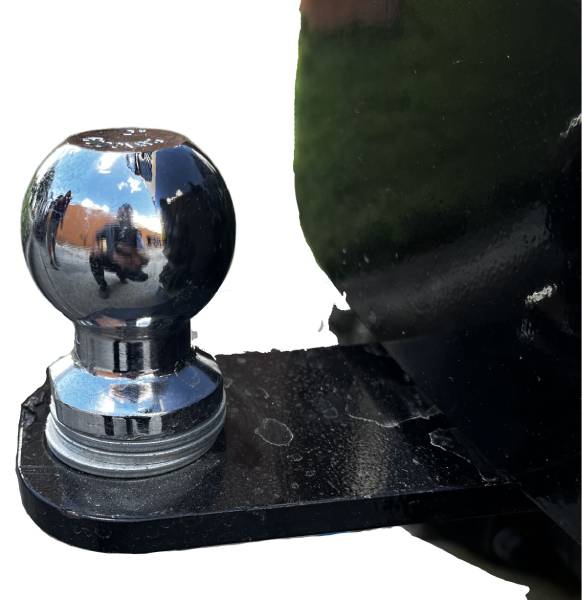

12, Reese Hitch With Ball To Stack Counter Weight

13, Quick Drain Line For Engine Oil

14, Hinged Rear Engine Door

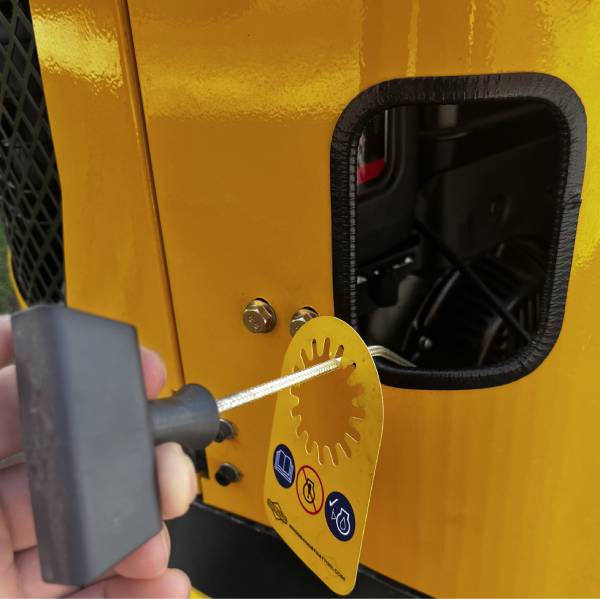

15, Access Hole For Backup Pull Start Chord

16, Zerk Grease Fittings

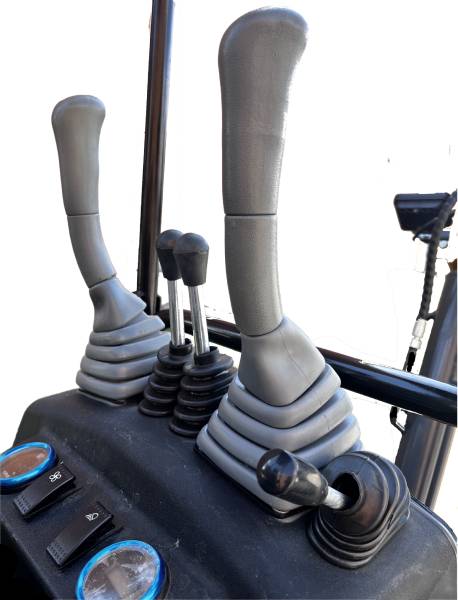

17, Rubber Around Control Levers

18, HD Battery

19, HD Tracks

20, LED Head Light

21, Digital Hour Meter

22, Digital Volt Meter

23, Operator manual

24, Briggs And Stratton Engine Manual

25, Tool Box With Spare Filters

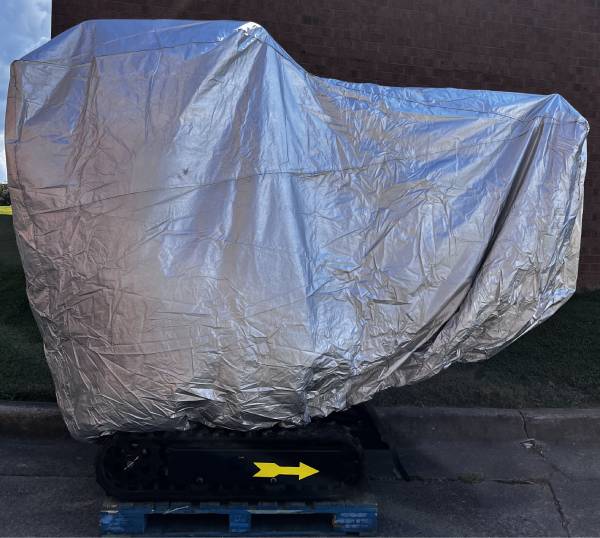

26, Cover Included

27, Cup Holder

28, Repair parts In The Country On The Shelf

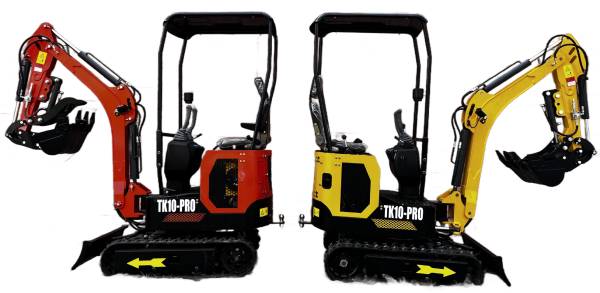

Colors: Orange ,Yellow, White
