| Disclaimer: Every effort has been made to ensure the accuracy of the information provided. However, product specifications, configurations, and systems/components are subject to change with equal performance substitutes with out notice. Information will be updated when available. |
| Model |

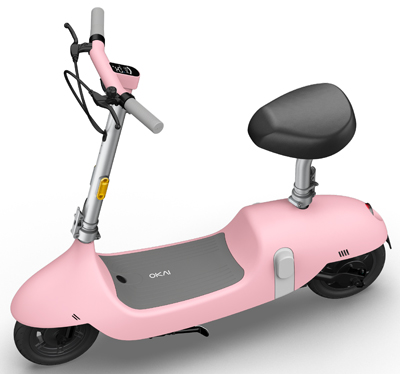

OKAI Beetle Pro (EA10C) |
| Number |
ITEM |
| 1 |
Vehicle parameters |
Expansion: LxWxH |
1145*533*1045mm?45.08*20.98*41.14inch? |
| 2 |
Folding: LxWxH |
1145*554 *614mm?45.08*21.81*24.17inch? |
| 3 |
N.W. |
29kg?63.93lbs? |
| 4 |
Max Speed |
25km/h?15.5mph? |
| 5 |
Range |
≤55km?34.18miles? |
| 6 |
Max gradient |
20% |
| 7 |
Adapted terrain |
Pavement |
| 8 |
Operating temperature |
0?40? |
| 9 |
Waterproof grade |
IPX5 |
| 10 |
Charging time |
2A?6H?3A?4H |
| 11 |
Battery
Parameter |
Rated Voltage |
48V |
| 12 |
Rated Capacity |
10.4Ah |
| 13 |
Battery (cell) Qty |
52Pcs |
| 14 |
Motor Parameter |
Motor size |
10 inch |
| 15 |
Max torque |
28N.m |
| 16 |
Rated Voltage |
48V |
| 17 |
Rated power |
350W |
| 18 |
Max power |
900W |
| 19 |
Motor control mode |
Brushless gearless motor |
| 20 |
Brake |
Brake stopping distance |
?4.5m (14.76ft) |
| 21 |
Brake mode |
Front: mechanical drum brake
Rear: mechanical drum brake + electronic brake |
| 22 |
Tires |
Tire Size |
Front : 10 inch
Rear: 10 inch |
| 23 |
Tire materials |
Vacuum tires |
| 24 |
Charger |
Input voltage |
100-240V |
| 25 |
Output voltage |
54.6V |
| 26 |
Output current |
2A |
| 27 |
Rider |
Max Load |
100kg?220.46lbs? |
| 28 |
Recommended age |
>14 years old |
| 29 |
Required height |
120-200cm?3.94-6.56ft? |
| 30 |
Features |
Brake light |
Light off/low light flashing alternately |
| 31 |
Ride Mode |
Zero start (Rear drive) |
| 32 |
Suspension Type |
Rear Suspension |
| 33 |
Certification |
UL 2272?2019, FCC SDOC, Prop 65 Test Report |
| 34 |
Packing |
Manner of packing |
1pc/ctn |
| 35 |
G.W. |
33.5kg?73.85lbs? |
| 36 |
LxWxH |
1165*330*550mm?45.87*12.99*21.65inch? |
| 37 |
UPC Code |
OKAI EA10C White US (48V)-UL |
608938952011 |
| 38 |
OKAI EA10C Black US (48V)-UL |
608938952028 |
| 39 |
EA-EA10C-US-PNK-48V-UL |
608938952035 |
| 40 |
EA- EA10C Green US (48V)-UL |
810100340018 |
| 41 |
Description |
OKAI Beetle Pro is designed with a new concept, just to bring you a perfect and comfortable riding experience like never before. The stylish exterior design and ergonomically designed high stretch compression seat will become a unique scenery on the road, and with the upgraded Beetle Pro goes farther and faster. 35 miles of range and 900W peak power will make your journey long again! |
| 42 |
Key Selling Points |
1. Stylish one-of-a kind design
2. Customers can paint and add decals to make a custom statement - D.I.Y. friendly!
3. The upgraded Beetle Pro goes further and faster:35-mile range 900w peak power |
| 43 |
Warranty |
Main engine:Frame assembly, wheel hub motor assembly, controller assembly, handle, instrument assembly,front straight rod and charging port;——One year warranty Parts:Battery assembly, charger, brake handle and fifinger-operating throttle;——Six months warranty Vulnerable parts of appearance?Handle covers, front fenders, rear fenders, plastic pedals, reflflective stickers, parking bracket assembly and rubber plug?——Three months warranty |
| 44 |
Setup Guide Video |
https://www.youtube.com/watch?v=xhyxef_1bgk&t=136s |
|
